ASNT Crack Detection Paper

Shawn Gowatski
TesTex, Inc.
535 Old Frankstown Road,Pittsburgh, PA 15239
(412) 798-8990; E-mail s.gowatski@testex-ndt.com

Introduction

The inspection of welds on piping, pressure vessels, columns, etc. is a major priority for plant personnel. Traditional methods such as magnetic particle, dye penetrant, shear-wave ultrasonics, radiography, and vacuum box testing are useful but all have some limitations. Most techniques require extensive surface preparation for a successful inspection. Radiography requires the area to be evacuated during testing which causes scheduling conflicts during an outage.
The introduction of the Balanced Field Electromagnetic Technique (BFET) has made inspecting welds much easier with less unit preparation time. BFET is a scanning technology that detects cracking within 0.375” of the surface. The Balanced Field Electromagnetic Technique has inspected DA Tanks, Piping, Tube Stubs, Drums, Columns, Dryers, Heat Exchanger Shells, and other pressure vessels.

Explanation of BFET

The Balanced Field Electromagnetic Technique was developed to enhance the signal responses produced from smaller defects such as cracks. In this technique, electromagnetic coils are wound and arranged in a balanced state. This balanced state is achieved by placing coils in both the “x” and “z” geometries at zero potential to each other. With the excitation coil in the “x” geometry and the sensor coil in the “z” geometry, a differential signal is produced over defected areas. In detail, the alternating current produced by the excitation coil is uniform and undisturbed when no defects are present. Conversely, the current is interrupted when a defect is present and forced to travel around it in a distorted fashion. It is this state of distortion that causes the coils to become unbalanced and thus producing an indication for the user that signals a defect. This signal response can be measured and through the use of proper calibration standards, a crack depth can be calculated. Another key to the balanced field electromagnetic technique is the ability to eliminate liftoff (and/or probe wobble) and noise from the signal. This is accomplished through a special algorithm in which these unwanted elements are rotated away from the main signal.

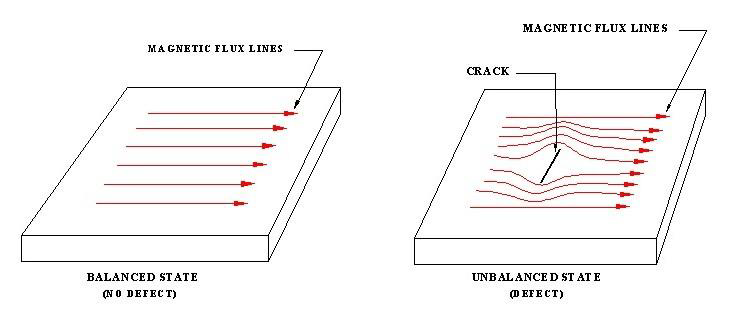

Illustration of how flux lines react when crack is detected

Figure 1: The diagrams above illustrate how the flux lines react to a clean area and also when a crack is encountered.



With the technology based on electromagnetics, a polished surface is not required. Quality readings can be acquired through coatings such as paint, epoxy, and rubber. The actual probe does not need to be in contact with the test piece. Sometimes the probe is placed in a small cart with the probe base set slightly above the test piece. The probe can be pulled quickly across the test specimen at a speed of up to 1 foot per second. The BFET method can test different types of metal by adjusting the test frequencies which range from 100HZ to 30,000HZ.

There are two different designs of BFET probes. The traditional Hawkeye probe is able to penetrate 0.125” into the metal which means surface cracks and sub-surface cracks that are within 0.125” of the surface can be detected. The coils in this probe are about the size of a pencil eraser which allows the probe to be shaped in different sizes and angles to meet the testing application. The second probe is called the HawkeyeDP (Deep Penetrating) which has a larger excitation coil that is 1.3” long. This probe is able to penetrate 0.375” into the metal which means surface cracks and sub-surface cracks within 0.375” of the surface can be detected. Probes can also be made of a ceramic material which allows the testing of units while online up to 500ºF. A special fabric can also be laid across the test area to help withstand the high temperatures.

Schematic shows coil arrangement of BFET probe

Figure 2: The schematic above shows the coil arrangement of the BFET probe.



The standard probes have a flat bottom surface. This surface can be machined to contain a 45º angle to allow the probe to scan the toe of the weld. The surface can also be machined to a specific radius for the inspection of tube and pipe welds. Multiple Hawkeye probes can be placed in a rig to scan a wider area at a time. For example, grouping 8 Hawkeyes together will enable the system to scan a 4” wide area per test sweep. The probes can also be mounted in an arc for the inspection of piping that has suspected cracking along the length of the pipe.

During an inspection, the data is viewed in real-time on a computer screen. This allows defects to be found and located during the data collection process which allows a plant to quickly prove-up any suspect defects and to schedule repairs without having to wait for the completion of the job.

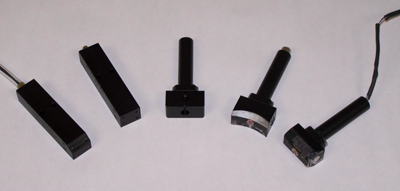

Picture of various Hawkeye Probe Designs

Figure 3: Picture above shows some different Hawkeye Probe Designs.



Applications of the Balanced Field Electromagnetic Technique

The Balanced Field Electromagnetic Technique has been used to inspect the welds on Pressure Vessels, Pipelines, Tank Floors, Tank Shells, High Temperature Lines, Expansion Joints, Tube to Header Stubs, etc. These inspections focus on the detection of cracking. The ConocoPhillips Refinery in Wood River, IL used the BFET systems extensively during their 2008 and 2009 turnarounds. Some of the units inspected included drums, columns, dryers, regenerators, separators, exchanger shells, piping, etc. The BFET systems have been used at numerous facilities throughout the world.

The procedure for testing the units consists of visually inspecting the units for cleanliness. Remember with electromagnetic testing, the surface does not need to be polished, but it does need to be relatively smooth. Uniform scale and rust do not pose a problem for BFET. The next step is to make a determination on the ability to perform testing in the current conditions. If the conditions are safe and suitable for a successful inspection, the areas to be tested are identified and the components are labeled. A thorough visual inspection examining the test area for defects is performed. Once the system is setup, a minimum of three scans are performed on the welds. For welds with a wider weld profile, an increased number of scans are performed to cover the entire weld surface and the toe of the welds. Any suspect signals are retested and marked. Accurate measurements are recorded and the flaws are identified for reporting. A detailed report is generated after the completion of testing. During the Wood River Turnarounds, ConocoPhillips reviewed the reports and had a second on-site contractor company prove-up the indications using Magnetic Particle, Shear-wave Ultrasonic, or Phased Array Testing. At many other places, TesTex performs the BFET inspections as well as the prove-up inspections with a second technique.

Waveform of crack indication using Hawkeye Probe

Figure 4: The waveform above was collected using a traditional Hawkeye Probe. This data was collected from a calibration plate that had two surface cracks. Both cracks are 0.008” wide with the first cracking at 0.083” deep and the second crack is 0.150” deep. The two large down and up signals that are circled are the crack indications. The waveform is viewed in five different windows. The bottom right window is the raw data and the bottom left window is the zoomed view which is used to focus on a specific section of the waveform. The top left window is also a zoomed up view of the data. The middle left window is a simulated C-scan of the data and the top right window shows a 3-D color view of the data.



Crack Indication using Hawkeye Probe

Figure 5: The waveform above was collected using the traditional Hawkeye probe. This data was collected on a Column during the 2008 ConocoPhillips Turnaround. The sharp up and down signal is a crack indication.



While the Balanced Field Electromagnetic Technique was originally brought to market with the focus on inspecting welds and the heat affected zones for cracking, the BFET technology has also been applied to piping, tubing, and vessels where potential cracking is of concern. This has included inspecting boiler tube bends, pipes, towers, etc. Some of these inspections have required a rig containing several probes together for a wider scanning area. The BFET has also been used to detect stress corrosion cracking in stainless steel superheater tubes.

Conclusion

The use of the Balanced Field Electromagnetic Technique has several advantages over the conventional testing methods. There is minimal surface preparation needed which reduces down time and costs involved in preparing the weld surfaces for testing. BFET can inspect through paints and coatings which provides more flexibility in testing. Surface and sub-surface cracks can be detected and quantified which provides a more in-depth understanding of the condition and integrity of the weld preventing any unforeseen forced outages. The faster testing speeds allow the inspection to be completed in a very short time frame, therefore providing quicker results and the ability for the plant to make timely repairs.
The probes can be designed to reach limited access areas. Special probes can be made to inspect units online. The probes can also be made with a concave bottom to fit a specific pipe contour. The Balanced Field Electromagnetic Technique is a proven tool to help a plant assess the condition of the welds and for any other areas experiencing cracking.
